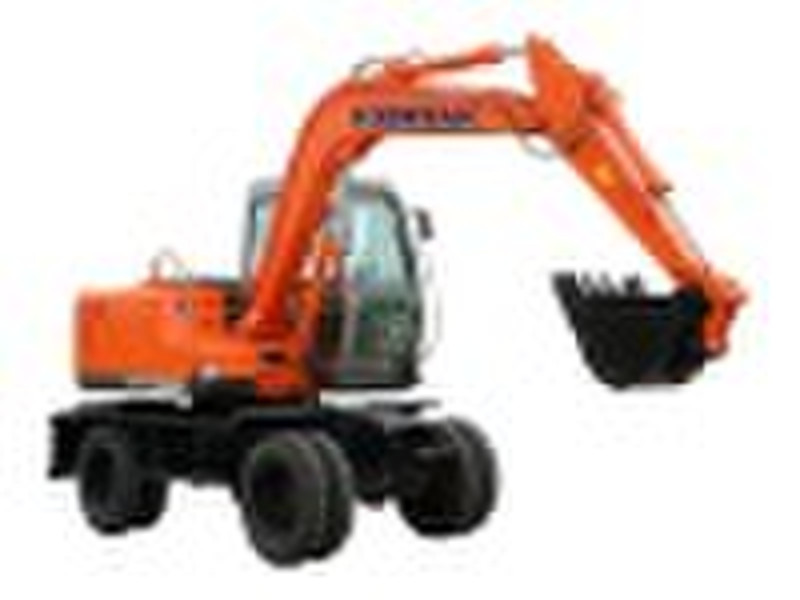

KT-Y80A Excavator

KT-Y80A excavator WORKING SPECIFICATIONS Overall length: 6450mm Overall height: 2900mm Rear swing radius: 1807mm Engine cover height: 1980mm Weight block height: 1110mm Swing flat roof width: 2230mm Cab height: 2970mm Tyre overall width: 2250 Ground clearance: 280mm Track: 2480mm Swing center to block axle: 1008mm Swing center to front vehicle frame: 2260mm WORKING RANGE Max. digging radius: 6080mm Max. digging depth: 3590mm Max. cutting height: 6430mm Max. uninstall height: 4930mm Min. swing radius: 2550mm WORKING SPECIFICATIONS Operating weight: 7580kg Fuel tank the volume: 160L Bucket capacity: 0.26 0.30 m3 Driving speed: 25km/h Engine Model: CY4102BG Max. climbing gradient: 30° Rated power: 53kw Swing speed: 10r/min Hydraulic Model: variable pump Flow: 20L/min Main pump: 2 Enactment press: 27Mpa Flow: 180L/min Hydraulic oil capacity: 130L Pilot pump: 1
