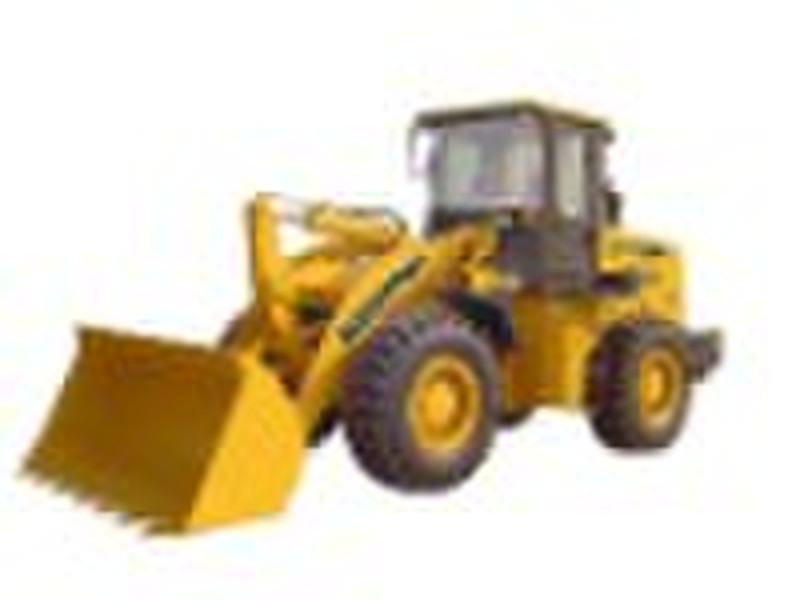

3ton wheel loader KT836 (Weichai Deutz engine)

Overall dimension (mm) KT836 wheel loader Length (Bucket on the ground) (mm) 6955 Width (mm) 2400 Height (mm) 3180 Max. dumping height (mm) ≥2990 Dumping reach (mm) ≥950 Performance Operation weight (T) 9.6 Bucket capacity (M3) 1.7 Rated load (T) 3 Max. traction force (KN) 90KN Max. digging force 100KN Steering angle ±35° Wheel base (mm) 2850 Tread width(mm) 1800 Bucket width (mm) 2400 Min. ground clearance (mm) 380 Engine model TD226B-6G Engine Rated power (KW) 92KW Engine Max. torque 500/1450Nm/r/min Engine Displacement (L) 6.234 Max. climbing gradient ≥25° Min. turning radius (outside bucket) mm ≤6170 No. of shift (forward/reverse) 2/1 Traveling speed (km/h) Forward gear I 11 Forward gear II 36 Reverse gear I 15 Fuel tank capacity (L) 150 Hydraulic tank capacity (L) 150 Lifting time (s) ≤65 Hydraulic cycle time (s) ≤10.55 Tire 17.5-25(12)PR ROPS/FOPS NO 1. Single rocker-arm reversal six-bar linkage 2. Twin-turbine torque converter 3. doubl-line disk friction in four-wheel 4. full hydraulic pressure sensing redirector
